Subsea Commercial Services Ltd.
Subsea Cameras, Lights, Pan & Tilts
An industry leader in the design and manufacturing of reliable high-tech equipment and systems for the most severe oceanographic, nuclear and military applications since 1975. Deployed globally on thousands of ROV subsea survey, inspection and construction projects in the harshest of marine environments, ROS equipment is proven and trusted. Please contact us directly for our full nuclear and military product offering.
Underwater Cameras
The C600 is an oceanographic HD colour camera with 30x optical zoom. Several HD formats are available and it features a 6,000 meter depth rating, 12-36 VDC power, Titanium housing, and a 80° field of view. Adjusted for underwater use, the C600 is ideal for subsea ROV and deep sea applications. The C600 has a 2-year warranty and various connector options.
The Spectator is an Subsea / Oceanographic 550 TVL colour zoom camera with 36x optical zoom. It features 4,000 meter depth rating, 11-30 VDC power, Titanium housing, and a 88° field of view. Applications include ROV inspection and long deployment monitoring projects. The Spectator has a 1-year warranty and various connector options.
The C460 is an Oceanographic 570 TVL black & white camera with exceptional sensitivity in very low light conditions as well as high-intensity sunlight. It features a 6,000 meter depth rating, 12-36 VDC power, Titanium housing, and a 77° field of view. Applications include ROV operations in low light high turbidity environments and deep sea applications. The C460 has a 2-year warranty and various connector options.
The C200 is an Oceanographic / Subsea 650 TVL miniature colour camera that reverts to black and white in low light conditions. It features 4,000 meter depth rating, 0.05 lux sensitivity, 12-26 VDC power, titanium housing, and a 67° field of view. Applications include ROV manipulator, TMS monitoring and confined ingress operations. The C200 has a 2-year warranty and various connector options.
Underwater Lights

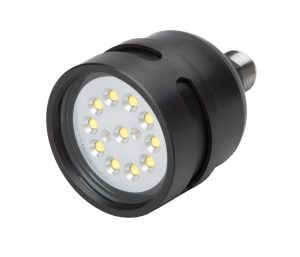

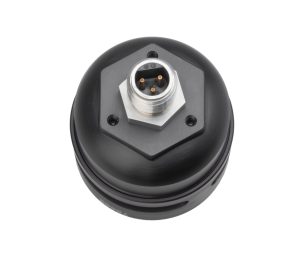

The SeaStar is our leading oceanographic ROV LED floodlight and ROS’s most innovative to date. With 10,000 lumens illumination, the light-weight and completely field serviceable SeaStar is ideal for harsh environment subsea applications including ROV operations and deep sea projects. Highly innovative, all the SeaStar’s internal components are field replaceable without specialist tools or training, reducing downtime and minimising servicing and logistics costs.
Manufactured from hard anodised aluminium, the 6000m rated SeaStar has a 110° beam angle, overheat protection and smooth full range dimming from zero to max. Available with 110 – 130 VAC or 24 VDC power, the SeaStar comes with 2-year warranty and various dimming and connector options.
The Q-LED III is an oceanographic floodlight featuring 120/220 VAC power, 4,000 meter depth rating, 80° beam angle and aluminium housing. The Q-LED III has a 1-year warranty and various connector options. Designed for subsea ROV operations, the Q-LED III is is the latest version of the market leading Q-LED underwater light series.
The QL-3000 is an oceanographic LED light with 10,000 lumens illumination. It features a 6,000 meter depth rating, 130 VAC power and aluminium housing. With thousands of units supplied worldwide the QL-3000 has been deployed on countless subsea oil and gas, marine renewables, marine exploration and marine construction projects. The QL-3000 has a 1-year warranty and various connector options.
The MV-LED II is an oceanographic LED spotlight with 1,500 (AC)/ 3,100 (DC) lumens illumination. It features 6,000 meter depth rating, 120 VAC or 24VDC power and hard anodised aluminium housing. The MV-LED II is the ideal spotlight for subsea ROV and deep sea applications. The MV-LED has a 2-year warranty and various connector options.
Pan & Tilts
The PT25 is an Oceanographic or Nuclear Pan and Tilt Positioner featuring a reliable and rigged design, 3,000 meter depth rating, 30 or 45 ft-lbs torque output, 120 VAC or 25 VDC power, an Aluminium housing and an Impulse LPMBH connector. Robust and proven in harsh subsea, oceanographic, nuclear and military applications, the PT25 has been mobilised worldwide on hundreds of ROV, monitoring and orientation projects. The PT25 has a 1 year warranty and various connector options.
Rotator option available
The P20 is an oceanographic and nuclear pan & tilt positioner engineered with a reliable and rugged design. Available in anodised aluminium or titanium and rated to 6,000m depth, it generates 10 lb-ft of torque, requires either 120 VAC or 24 VDC power, RS-485 control and optional zinc anode. Robust and proven in subsea, oceanographic, nuclear and military applications, the PT20 has been mobilised worldwide on hundreds of ROV, subsea survey and deep sea research and orientation projects. The P20 has a 2-year warranty and various connector options.
Rotator option available
The Accu-Positioner is an 6000m rated lightweight deep sea oceanographic pan & tilt positioner. featuring a reliable and rugged design and computer-controlled accuracy to +/- 0.1°. Ideal for a variety of subsea applications including subsea sonar surveys, the orientation of ROV cameras, LEDS and sensors the Accu-Positioner has been deployed globally integrated to ROS, landers and subsea frames. The Accu-Positioner has a 2-year warranty and various connector options.
